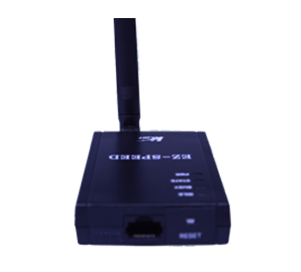

ONECLICK G100


The Most Advanced and Innovated GSM/GPRS Modem
G100 provides many advantages for companies who need solutions to need serial to cellular gateway with a SIM offering state-of-the-art 2G connectivity for machine to machine (M2M) applications such as AMR, Automotive, Security, Vending, Industrial, Automation, etc.
SPECIFICATION

Frequency Range GPRS Clas
Quad-Band 850/ 900/ 1800/ 1900 MHz GPRS multi-slot class 10/8 / GPRS mobile station class B
Class 4 (2 W @850/ 900 MHz) / Class 1 (1 W @ 1800/1900MHz)
AT command Low power consumption
Control via AT commands (GSM 07.07 ,07.05)
SIM application toolkit support
1.0mA @Sleep mode
Specifications for Fax Specifications for GPRS Data
Group 3, class 1 GPRS class 10: max. 85.6 kbps (downlink) / PBCCH support
Coding schemes CS 1, 2, 3, 4 / PPP-stack
Specifications for CSD Data Specifications for SMS
USSD
Non transparent mode
Point to point MO and MT / SMS cell broadcast
Text and PDU mode
Specifications for Voice Interfaces

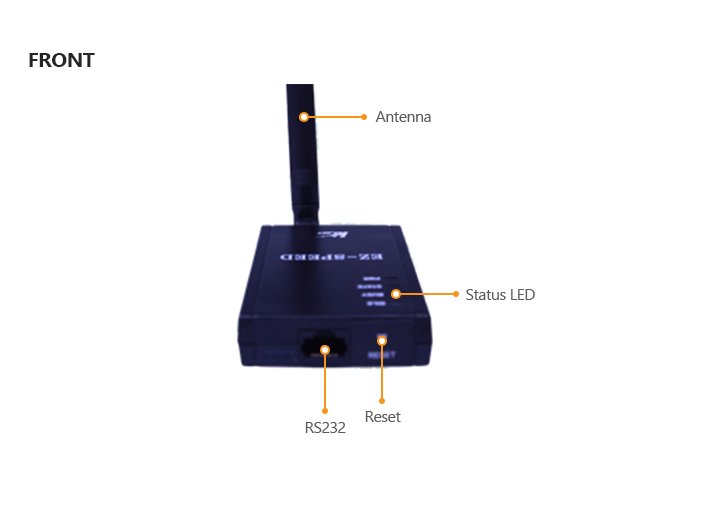

Tricodec / AMR / Hands-free operation Sim Card interface(3V/ 1.8V) / RS232 (RJ45 Jack)
/ Antenna connector
Software features Environmental
Built in embedded TCP/UDP stack , FTP/HTTP Operating temperature : -400° to 85° C
Humidity : 5% to 90% non-condensing

Competitive Features

  • 1 years Warranty (The warranty period can be also extended more by a separate agreement.)
  • Long term life time support up to 5 years
  • Long term experiences and know-how accumulated in the fields since 2007.
  • Various options: Built-in wireless such as GSM/GPRS/3G/LTE, Bluetooth, Wi-Fi, NFC, RFID and others and extended serial/digital inputs and outputs, etc.
  • ONECLICK SDK: Provides developers with a convenient and effective way to incorporate credit cards into their solutions.
  • Customization or OEM/ODM is available
