Counter Top POS

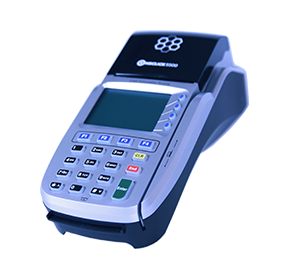

ONECLICK 5500
The Most Advanced and Innovated Counter-top ETF-POS
|
ONECLICK 5500 provides many advantages for companies who need solutions for payment & value-added services - including credit, debit, smart cards, prepaid, lottery, gift & proprietary cards.
The terminal suits markets like delivery, conventions, stadium, insurance, transportation services, after services, traveling sales, outdoor sales & services.
|
|
SPECIFICATION
|
Processor & Operating System
|
|
KEY
|
|
Microprocessor
|
Cortex-ARM 32Bit RISC CPU
|
|
3 x 4 alpha-numeric keys, 7 soft-function keys and
4screen-addressable keys
|
|
Operation system
|
RTOS
|
|
SAM
|
|
Memory
|
|
ISO7816,T=0,T=1 SAM Socket: MAX 4
|
|
Flash Memory
|
3MByte Nor-Flash
|
|
Peripheral Port
|
|
RAM
|
640KByte SRAM
|
|
Serial Port : 1EA , USB 2.0 Host Port : 1EA
|
|
Display
|
|
Wireless Modem (Option)
|
|
128 * 64 pixels & 1Line Character LCD with Back Light
|
|
Can support CDMA, GSM/GPRS, 3G & LTE
|
|
PSTN
|
|
Dimensions
|
|
Up to 56kbps[V90,V34,V21,V22,V32bis,V22bis]
|
|
79mm(W) X 144mm(L) X48mm(H)
|
|
Magnetic Card Reader
|
|
Power Adapter
|
|
ISO 7811 Track 1&2 or 2&3
|
|
Input:100~240VAC at 50/60Hz ,Output:9VDC Max 3000mA/h
|
|
Printer
|
|
Environmental
|
|
2 Inch Thermal Printer
|
|
Operating Temperature : -20°~ 80
|
|
Piezo Buzzer
|
|
Storage Temperature :-30°~90°
|
|
PWM Buzzer
|
|
Humidity : 5% to 95%
|
|
RF Card Reader (Optional)
|
|
Security
|
|
ISO-14443 Type A & B, FeliCa, NFC Type 1~4
|
|
DES, RSA, AES
|
|
Smart Card
|
|
|
IC socket, ISO7816, T=0; T=1 EMV 2000 Approved (EMV Level
|
|
|
|
1 compliant Module)
|
|
|
Competitive Features
-
1 years Warranty (The warranty period can be also extended more by a separate agreement.)
-
Long term life time support up to 5 years
-
Long term experiences and know-how accumulated in the fields since 2007.
-
Various options: Built-in wireless such as GSM/GPRS/3G/LTE, Bluetooth, Wi-Fi, NFC, RFID and others and extended serial/digital inputs and outputs, etc.
-
ONECLICK SDK: Provides developers with a convenient and effective way to incorporate credit cards into their solutions.
-
Customization or OEM/ODM is available
|
